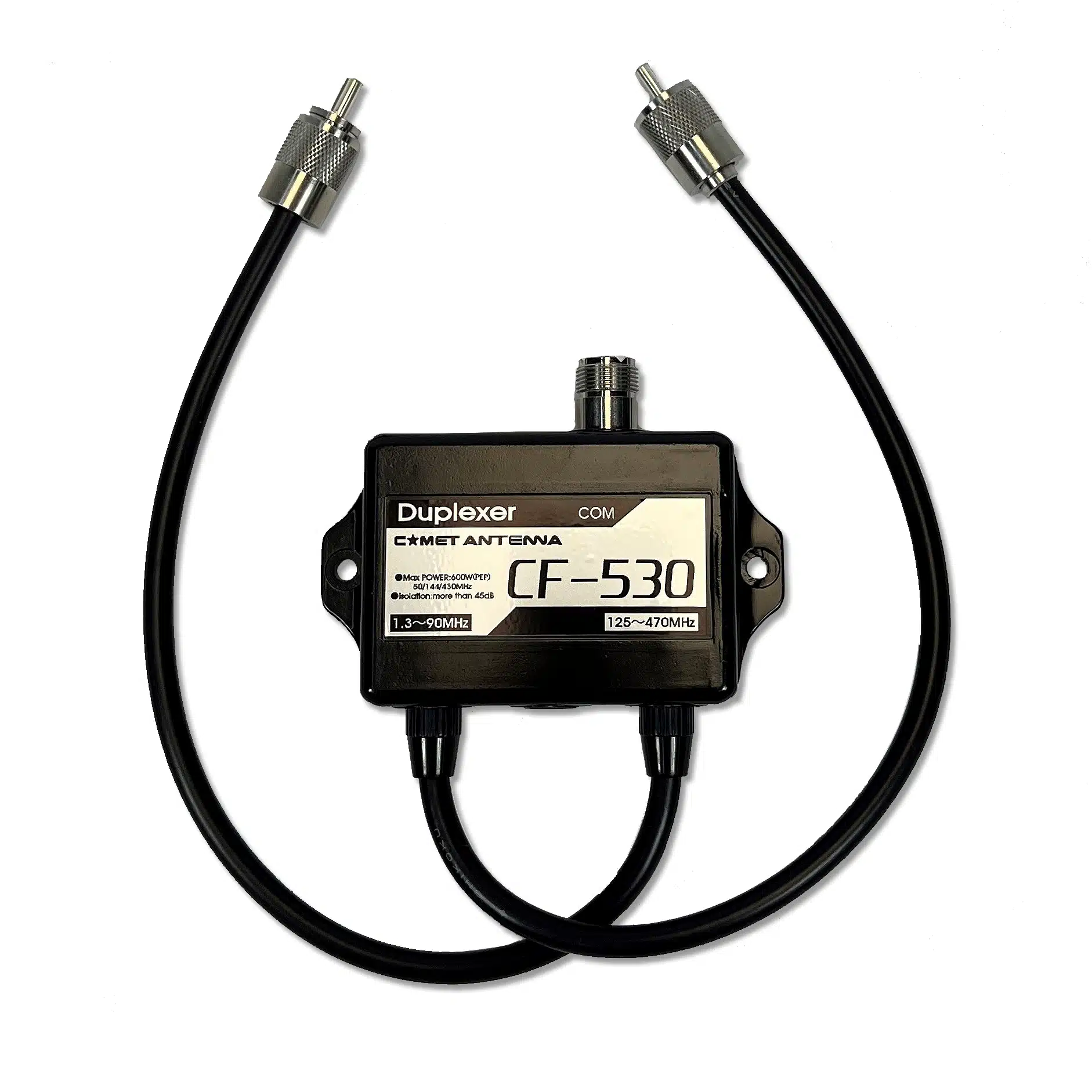

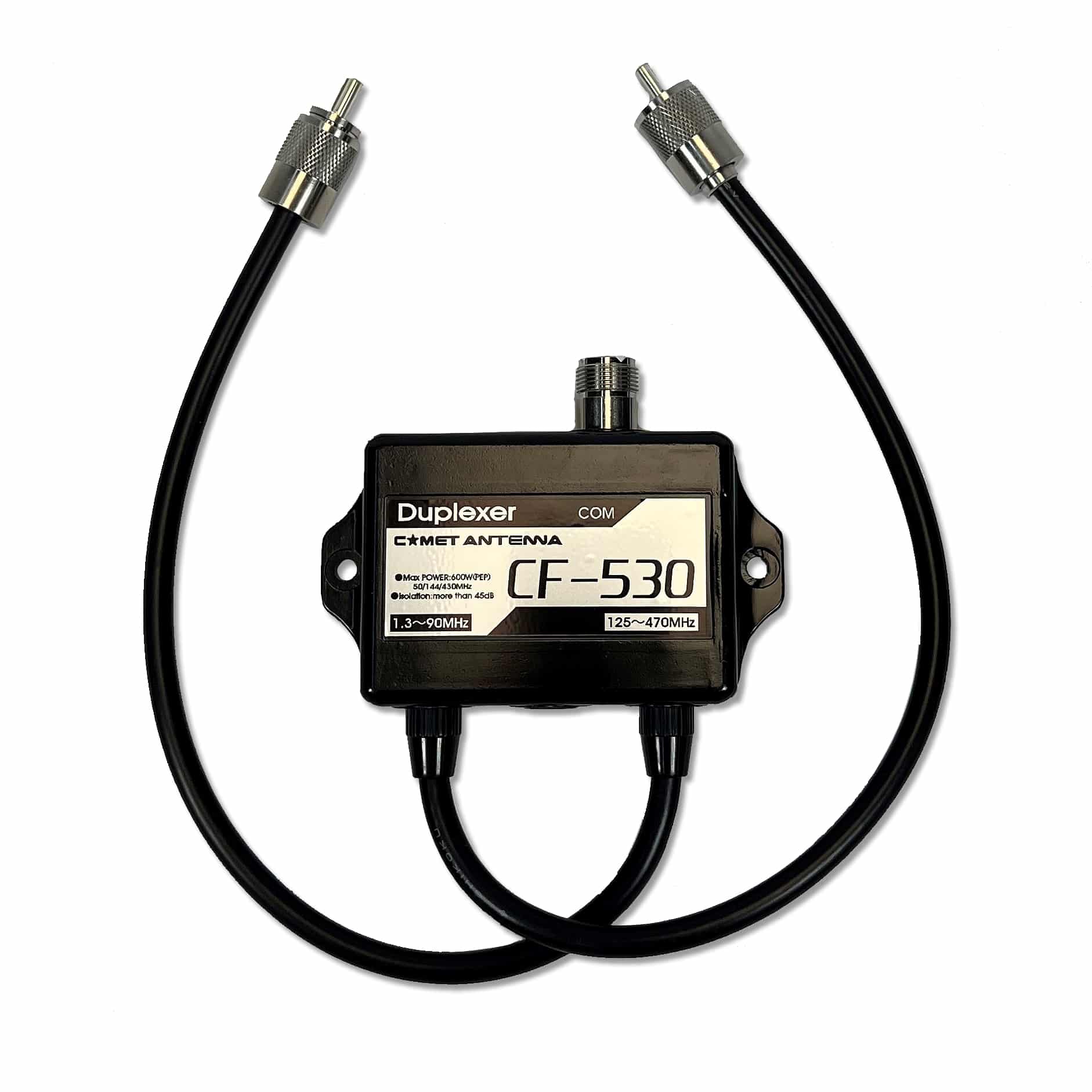

Comet – CF-530 – 1.3-90MHz-125-470MHz Duplexer w-Leads

Description

HF-6M-2M/440MHz Duplexer
For the IC-706/MKII/G FT-100, etc..

                      Band Pass      Ins Loss      Max Power
Low Pass:    1.3-90MHz         .2dB            600W PEP
High Pass:  125-470MHz        .2dB             600W PEP

Isolation: 45dB minimum

CONNECTORS:
Common: SO-239
Low Pass: PL-259
High Pass: PL-259
