Description

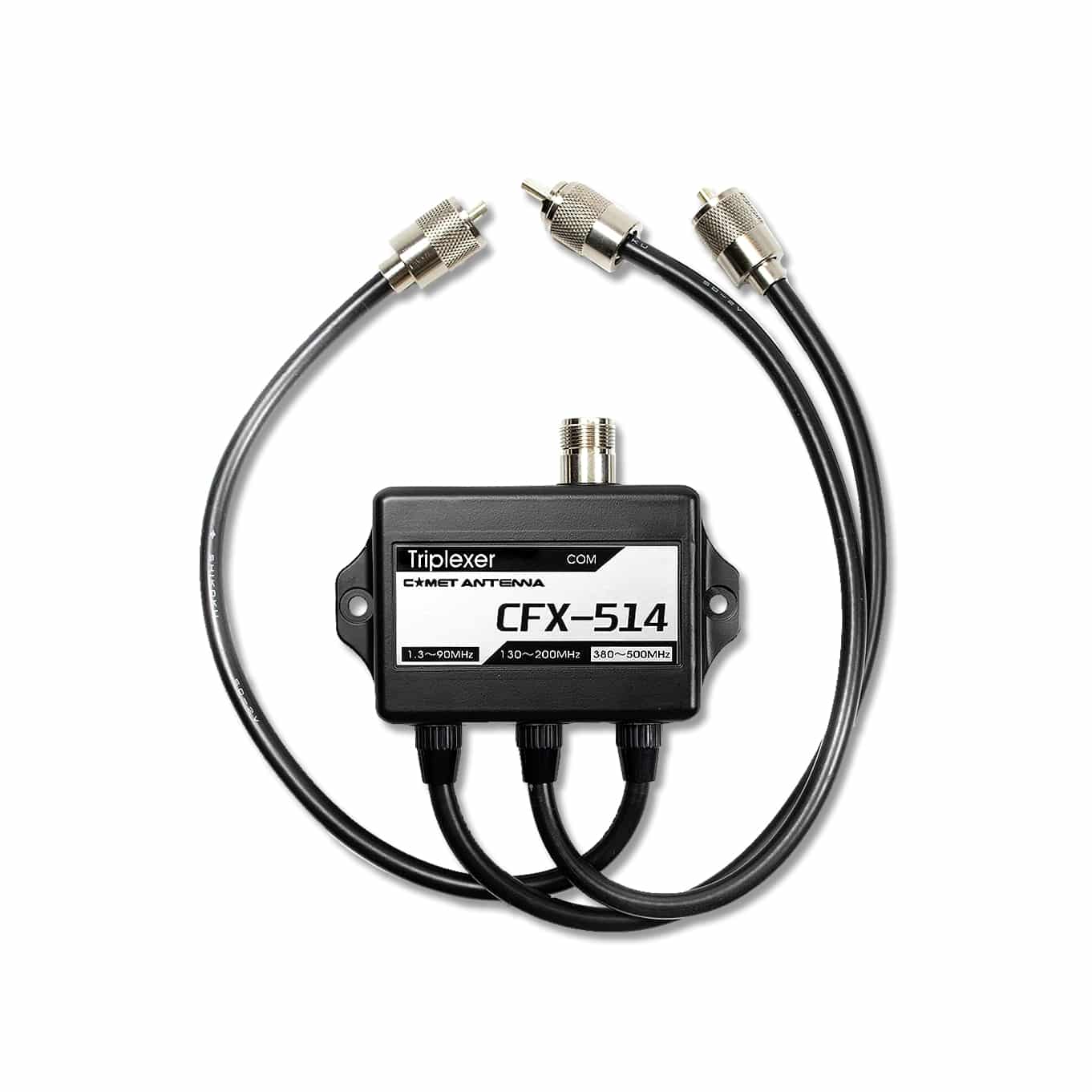

HF-6M/2M/440MHz Triplexer
Frequency Range Loss Max Power
1.3-90MHz 0.2dB 800w PEP
130-200MHz 0.25dB 800w PEP
380-500MHz 0.3dB 500w PEP
Isolation: 55dB
CONNECTORS:
Common: SO-239
Low In: PL-259 with coax lead
Mid Pass: PL-259 with coax lead
High Pass PL-259 with coax lead
There are several other HF-6M/2M/440MHz triplexers with different coax connector combinations
CFX-514N: Same as CFX-514, but has an N-Conn on 440MHz
CFX-5140: Same as CFX-514, but without coax leads
