Description

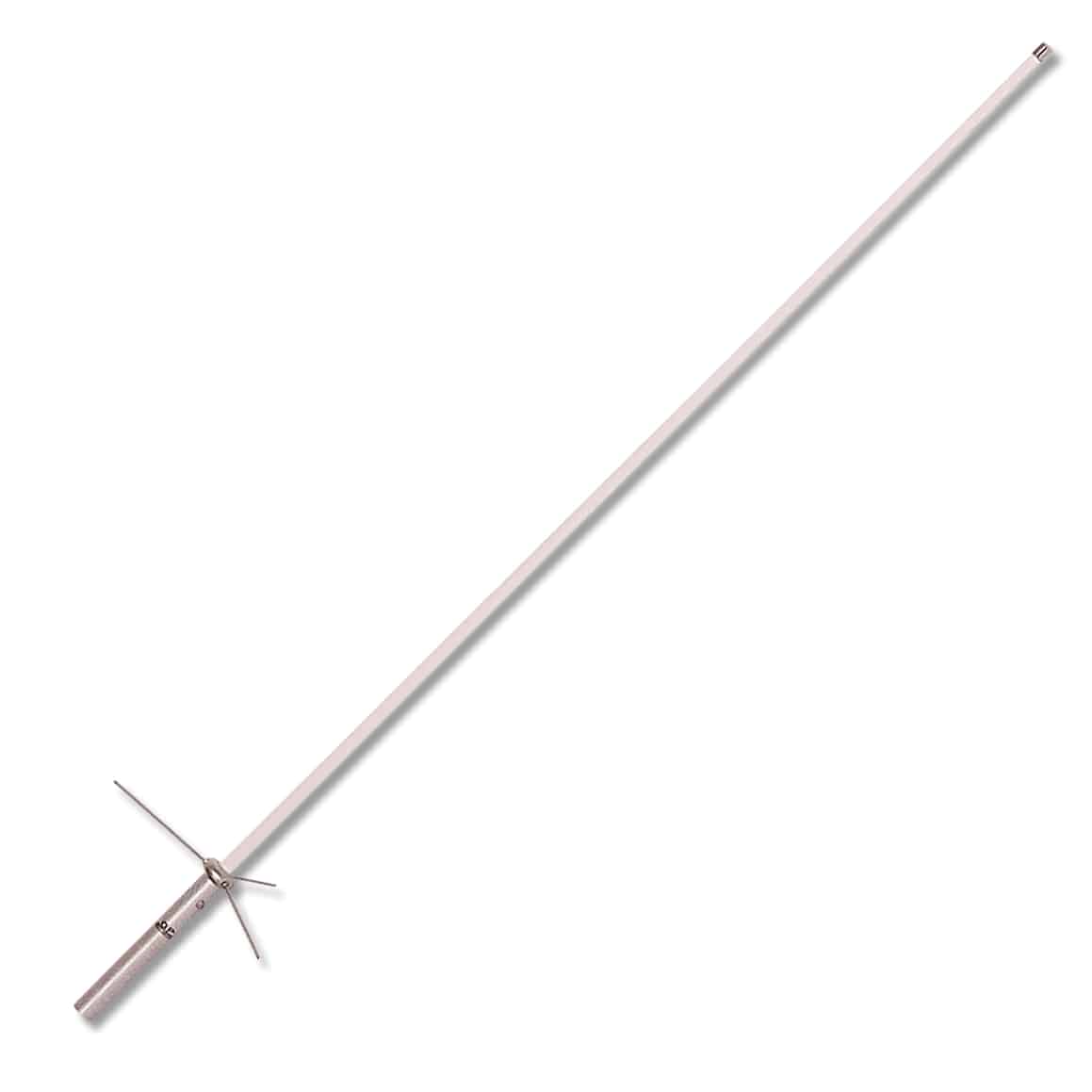

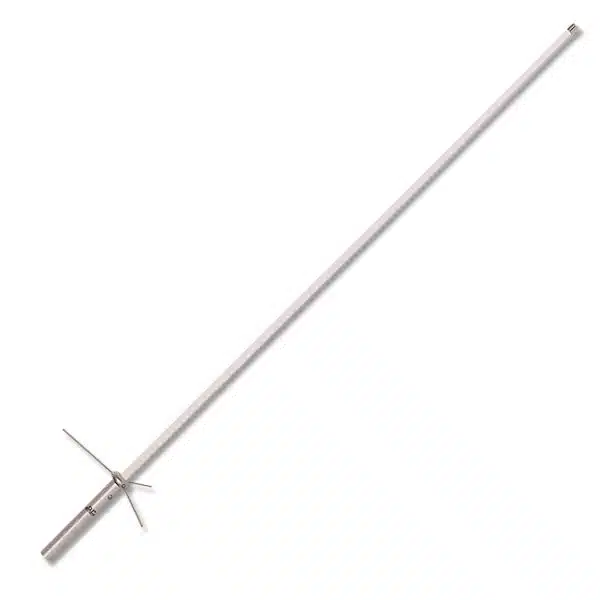

2M/70cm Base/Rptr Antenna
Small profile, good gain, excellent construction…our best selling dual-band base antenna.
Gain:
2M: 4.5dBi 5/8 wave, center phase
440MHz: 7.2dBi Three 5/8 waves in phase
VSWR: 1.5:1 or less
Max Power: 200 watts SSB/100W FM
Length: 5′ 11″
Weight: 2 lbs. 12 oz.
Mounting Mast Dia: 1.25 – 2.50″
Connector: SO-239
Construction: Heavy-duty fiberglass
Mount pipe acts as shroud to protect the antenna/coax conection from the elements.
Unique “split-thread” lock bolt is supplied to attach the antenna to the mount pipe, the threads compress when installed to keep the bolt from backing out.
