Description
SWR Meter What To Expect – https://www.youtube.com/watch?v=i29pI7okLe4

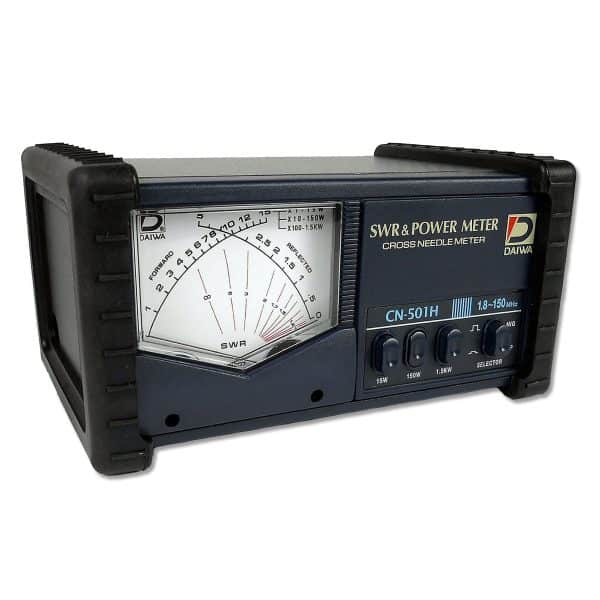

Economy series, compact HF/VHF AVG reading SWR/Power meter
Cross needle technology displays all three results:
Forward power
Reflected power
SWR
All displayed simultaneously without the need to re-calibrate the meter between measurements
Frequency: 1.8-150MHz
Power Range Forward: 20/200/2kW
Power Rating: 2kW (1.8-60MHz) 1kW (144MHz)
Accuracy: +/- 10% (at full scale)
SWR Detection Sensitivity: 4 W min
Input/Output Impedence: 50 OHM
Input/Output Connectors: SO-239
Dimensions & Weight: 5″ x 3″ x 4″/ 1 lb 8 ozs
Anti-slip edge guards
LED Lighted

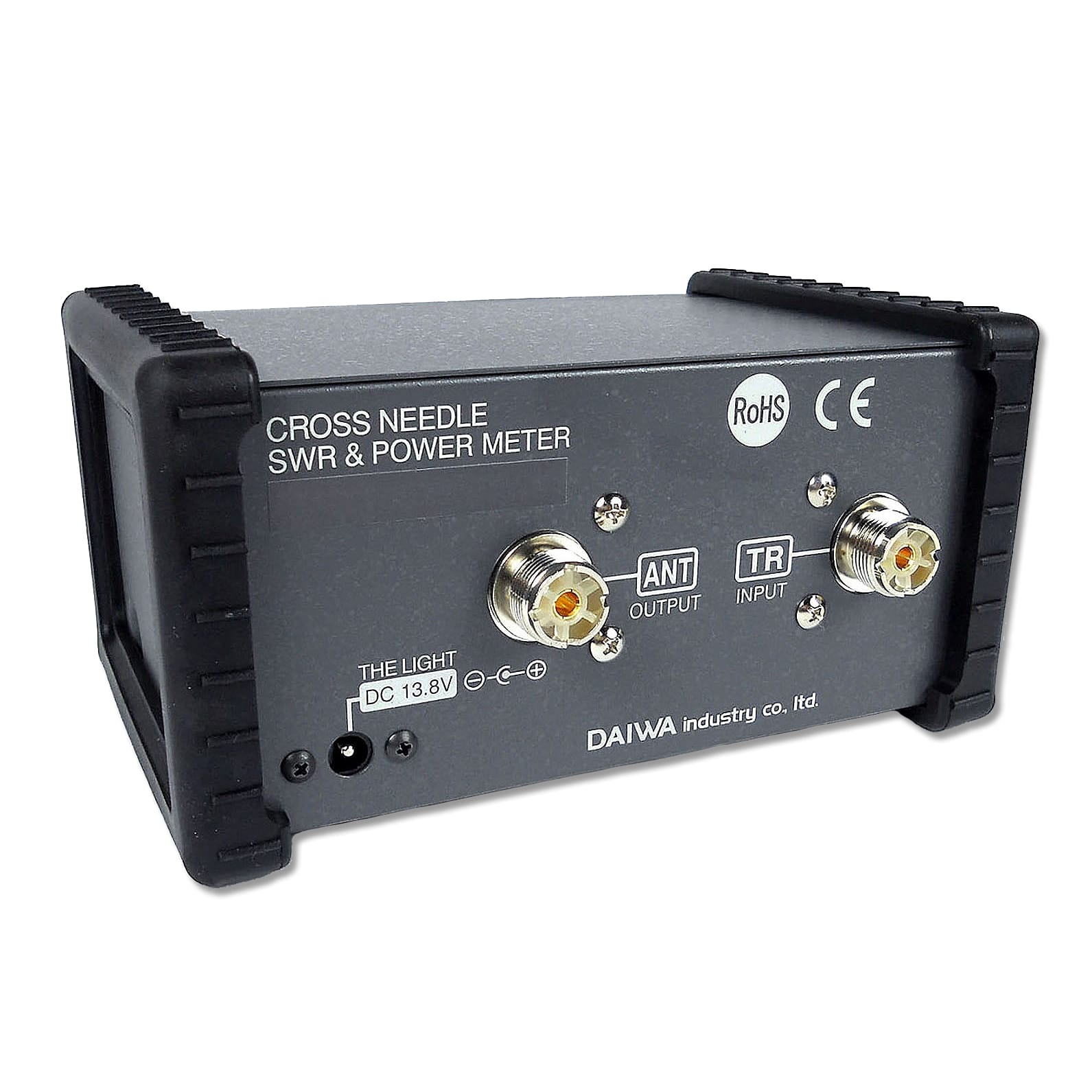

Gold plated SO-239 Connectors
12V power receptacle for the light
12V power receptacle, power cord included, not needed to use the meter
